Wózki jezdne do bram samonośnych
Wózki jezdne do bram samonośnych
o szer. światła 4-6m. i ciężarze do 500kg
Dostępne do profila 80x80x4; 80x80x5; 70x70x4, rolki z tworzywa lub metalu.

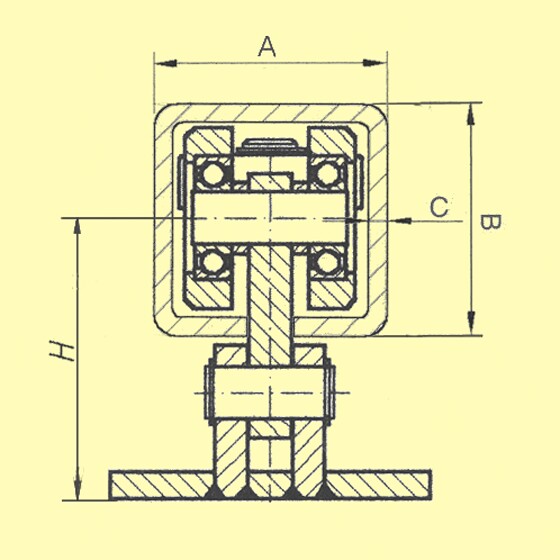

WBJ-1

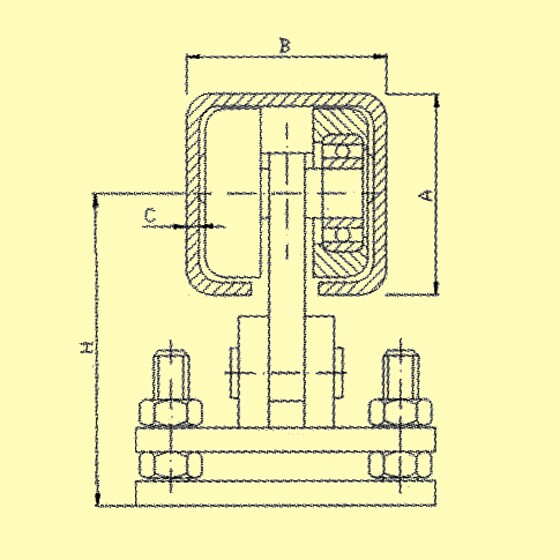

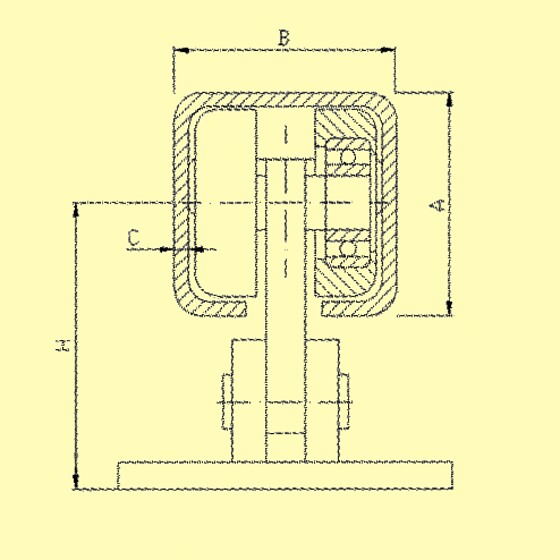

| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-1/80/4 | 112 | 80 | 80 | 4 |
| WBJ-1/80/5 | 112 | 80 | 80 | 5 |
| WBJ-1/70/4 | 112 | 70 | 70 | 4 |

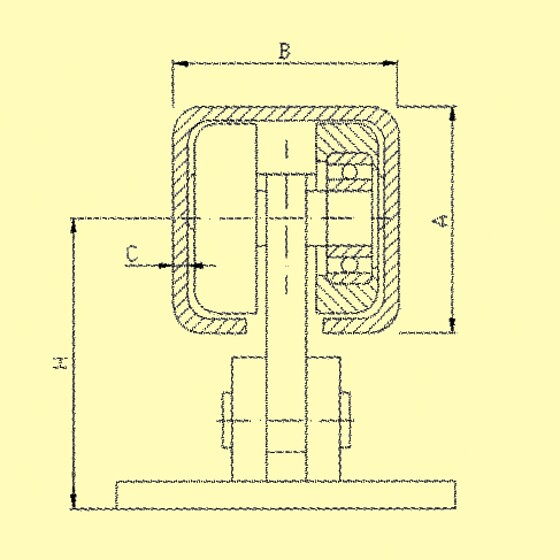

WBJ-2
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-2/80/4 | 104 | 80 | 80 | 4 |
| WBJ-2/80/5 | 104 | 80 | 80 | 5 |
| WBJ-2/70/4 | 104 | 70 | 70 | 4 |
WBJ-½
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-½/80/4 | 120 | 80 | 80 | 4 |
| WBJ-½/80/5 | 120 | 80 | 80 | 5 |
| WBJ-½/70/4 | 120 | 70 | 70 | 4 |
Wózki jezdne do bram samonośnych
o szer. światła 2,5-4m. i ciężarze 150-300kg
Dostępne do profila 80x80x4; 80x80x5; 70x70x4, rolki z tworzywa lub metalu.
WBJ-3
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-3/80/4 | 92 | 80 | 80 | 4 |
| WBJ-3/80/5 | 92 | 80 | 80 | 5 |
| WBJ-3/70/4 | 92 | 70 | 70 | 4 |
WBJ-4
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-4/80/4 | 92 | 80 | 80 | 4 |
| WBJ-4/80/5 | 92 | 80 | 80 | 5 |
| WBJ-4/70/4 | 92 | 70 | 70 | 4 |
WBJ-4A
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-4A/80/4 | 71 | 80 | 80 | 4 |
| WBJ-4A/80/5 | 71 | 80 | 80 | 5 |
| WBJ-4A/70/4 | 71 | 70 | 70 | 4 |
Wózki jezdne do bram samonośnych
o szer. światła pow. 6m. i ciężarze pow. 500kg
Dostępne do profila 80x80x4; 80x80x5; 70x70x4, rolki z tworzywa lub metalu.
WBJ-2/D
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-2/D/80/4 | 104 | 80 | 80 | 4 |
| WBJ-2/D/80/5 | 104 | 80 | 80 | 5 |
| WBJ-2/D/70/4 | 104 | 70 | 70 | 4 |
WBJ-2/L
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-2/L/80/4 | 104 | 80 | 80 | 4 |
| WBJ-2/L/80/5 | 104 | 80 | 80 | 5 |
| WBJ-2/L/70/4 | 104 | 70 | 70 | 4 |
WBJ-2/XL
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-2/XL/80/4 | 104 | 80 | 80 | 4 |
| WBJ-2/XL/80/5 | 104 | 80 | 80 | 5 |
| WBJ-2/XL/70/4 | 104 | 70 | 70 | 4 |
WBJ-½/D
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-½/D/80/4 | 120 | 80 | 80 | 4 |
| WBJ-½/D/80/5 | 120 | 80 | 80 | 5 |
| WBJ-½/D/70/4 | 120 | 70 | 70 | 4 |
WBJ-½/L
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-½/L/80/4 | 120 | 80 | 80 | 4 |
| WBJ-½/L/80/5 | 120 | 80 | 80 | 5 |
| WBJ-½/L/70/4 | 120 | 70 | 70 | 4 |
WBJ-½/XL
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-½/XL/80/4 | 120 | 80 | 80 | 4 |
| WBJ-½/XL/80/5 | 120 | 80 | 80 | 5 |
| WBJ-½/XL/70/4 | 120 | 70 | 70 | 4 |
Wózki jezdne do bram samonośnych
o szer. światła max 4m. i ciężarze max 200kg oraz do drzwi przesuwanych
Dostępne do profila 50x50x3; 60x60x3; 60x60x4, rolki z tworzywa lub metalu.
WBJ-4A 50/60
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-4A 50/3 | 57 | 50 | 50 | 3 |
| WBJ-4A 60/3 | 57 | 60 | 60 | 3 |
| WBJ-4A 60/4 | 57 | 60 | 60 | 4 |
WBJ-2 50/60
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-2 50/3 | 78 | 50 | 50 | 3 |
| WBJ-2 60/3 | 78 | 60 | 60 | 3 |
| WBJ-2 60/4 | 78 | 60 | 60 | 4 |
WBJ-2L/60
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-2L/60/3 | 78 | 60 | 60 | 3 |
| WBJ-2L/60/4 | 78 | 60 | 60 | 4 |
WBJ-5 50/60
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-5 50/3 | 68 | 50 | 50 | 3 |
| WBJ-5 60/3 | 68 | 60 | 60 | 3 |
| WBJ-5 60/4 | 68 | 60 | 60 | 4 |
WBJ-5A 50/60
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-5A 50/3 | 68 | 50 | 50 | 3 |
| WBJ-5A 60/3 | 68 | 60 | 60 | 3 |
| WBJ-5A 60/4 | 68 | 60 | 60 | 4 |
WBJ-5L 60
| TYP | H | A | B | C |
|---|---|---|---|---|
| WBJ-5L 60/3 | 160 | 60 | 60 | 3 |
| WBJ-5L 60/4 | 160 | 60 | 60 | 4 |
